You create concrete birdbaths when low spots trap water rather than directing it to drains, joints, or slab edges. Poor subgrade compaction, bad screed elevations, uneven strikeoff, overworked paste, and raised edges can all leave depressions. Those puddles concentrate moisture, deicers, grit, and freeze-thaw stress, causing scaling, staining, slip hazards, joint damage, and corrosion. Prevent them with stable base prep, verified grades, proper finishing timing, and slopes around 1/8 to 1/4 inch per foot. More details ahead.

What Causes Low Spots in Concrete?

Why do low spots form in a concrete slab? They usually start before finishing, when your subgrade isn’t compacted, forms aren’t set to the right elevation, or screed rails don’t match the intended slope. As you place concrete, inconsistent slump, uneven strikeoff, and poor bull floating can leave shallow depressions. If you overwork wet areas, you can pull paste into dips, reducing surface accuracy. Low spots also appear when concrete settles over soft base pockets or around penetrations, drains, and edges. To support concrete drainage, you need verified grades, laser-controlled layout, stable base preparation, and systematic finishing passes. Don’t rely on visual checks alone; use digital levels or robotic layout tools to confirm slope, flatness, and elevation while the slab is still workable.

Why Concrete Birdbaths Cause Damage

Once a low spot remains after finishing, it becomes a birdbath that holds water instead of shedding it to drains, joints, or edges. You then create a concentrated exposure zone where moisture, deicers, dirt, and chemicals stay longer than the mix design intended. That standing water drives water damage by feeding surface scaling, freeze-thaw stress, joint deterioration, and embedded steel corrosion.

You’ll also see accelerated wear because tires, foot traffic, and equipment push grit through the puddle like an abrasive slurry. In occupied areas, birdbaths raise slip risk and invite staining, algae, odors, and maintenance calls. Low spots can even mask early cracking because water darkens the slab, hiding distress. If you want durable, high-performance concrete, you can’t treat ponding as cosmetic.

How Much Slope Concrete Needs

How much slope you need depends on exposure, drainage layout, surface texture, and construction tolerance, but flatwork that must drain should never be designed as perfectly level. For exterior slabs, you’ll typically target 1/8 to 1/4 inch per foot, with 1/4 inch per foot preferred where rainfall, washdown, or freeze-thaw risk is high. For interior wet zones, use enough fall to move water to drains without creating trip hazards or equipment issues.

You should verify elevations before placement and build in tolerance for real-world variation. Laser layout, digital grade checks, and coordinated drain elevations help you prevent low pockets. Maintain slump consistency so screeding follows the designed plane. Use joint layout and reinforcement to control tension, keeping drainage geometry stable as the slab cures and moves.

Which Finishing Mistakes Create Birdbaths?

Which finishing mistakes turn a properly sloped pour into a birdbath? You create trouble when you chase cream too long, overwork the surface, or re-float areas after bleed water appears. Those finishing flaws move paste, close drainage texture, and leave subtle depressions your screed didn’t create. If you edge too aggressively, you can raise borders that trap runoff. If you broom against the drainage path, you slow sheet flow and hold water in shallow pockets.

Watch your timing. Finish before the slab supports the tool, and you’ll dish the surface. Wait too long, and you’ll drag hardened paste into ridges. Poor joint spacing also matters; uncontrolled shrinkage can curl panels, distort slope, and form localized low points. Use laser checks and digital slope verification throughout the finishing process.

How to Fix Low Spots After Pouring

Why fix a low spot before the slab fully cures? You still have a narrow correction window where bonding, texture, and cure timing can work in your favor.

1. Recheck drainage with a straightedge, laser, or digital level. Mark the depression edges, not just the deepest point.

2. Act early if the surface is plastic enough. You can rework paste, feather the area, and refloat it without adding weak material.

3. Use repair mortar after initial set. Clean the surface, roughen it, apply bonding agent, then place a polymer-modified patch flush with the slope.

4. Control moisture during curing. Mist, cover, or seal the repair so it hydrates evenly.

Don’t flood the spot or over-trowel it. Both increase the risk of cracking and leave a brittle patch.

How Pros Prevent Low Spots in Concrete

You prevent low spots before the pour by building a stable, uniform subgrade and setting accurate screed references. You compact the base, correct soft areas, and verify slope so the slab has consistent support. Then you screed to fixed elevations with straight, controlled passes that cut high material and fill lows before bleed water appears.

Proper Subgrade Preparation

How do pros prevent birdbaths before the truck arrives? You start below the slab. A smart base controls elevation, drainage, and support before concrete ever hits the forms.

1. Verify subgrade moisture. You don’t pour over pumping, dry, or frost-affected soil. Use probes or sensors to confirm consistent moisture across the pad.

2. Cut highs, fill lows. You correct grade with engineered fill, not extra concrete. Thin corrections save money and reduce differential settlement.

3. Compact in lifts. You place fill in controlled layers, then test compaction uniformity with a plate, roller, or density gauge.

4. Map soft zones. You flag yielding areas, remove unstable material, and replace it with compacted aggregate.

When the subgrade stays stable, your slab stays predictable, flatter, and more resilient.

Accurate Screed Techniques

Once the base is right, accurate screeding keeps the slab from inheriting waves, dips, and birdbaths. You set grade with verified benchmarks, laser receivers, and tight edge forms before concrete arrives. During pre-pour coordination, you confirm mix slump, placement sequence, screed path, access points, and crew roles so the strike-off never outruns consolidation. Use a vibrating screed or laser screed matched to bay width, and pull at a steady speed to avoid chatter, humps, or dragged aggregate. Don’t add water to regain workability; adjust with approved admixtures. Check elevations continuously with a smart level or robotic total station, then correct highs and lows while the surface stays plastic. Pair screeding data with moisture testing plans, because drainage, curing, and vapor performance all depend on flatness.

Frequently Asked Questions

Can Low Spots in Concrete Affect Property Drainage Codes?

Yes, low spots can affect property drainage codes. You create a drainage impact when concrete traps runoff, redirects flow to structures, or prevents positive slope to approved discharge points. Inspectors may flag code compliance issues if ponding exceeds local tolerances, threatens foundations, or crosses property lines. You’ll need precise grading, laser verification, and sometimes corrective grinding, overlays, or drains. Smart layout modeling helps you prevent failures before you pour.

How Do You Test Concrete for Hidden Low Spots?

Picture a glassy floor after rain: water beads reveal every dip. You test concrete for hidden spots by lightly flooding the slab, using a straightedge and a laser level to map deviations, then marking ponding areas. Run moisture testing with in-slab RH probes or surface meters to confirm trapped dampness below the finish. Capture elevations digitally, compare slope tolerances, and don't rely on eyesight alone—use data to guide grinding, patching, or drainage correction.

Are Birdbaths Covered by Concrete Contractor Warranties?

Usually, you’re covered only if the contract or warranty defines birdbaths as defects exceeding stated tolerances. You should check slope specs, flatness limits, drainage requirements, and exclusion clauses. Water pooling often counts when it causes functional drainage failure, not when it causes minor cosmetic depressions. Document depths, durations, photos, and weather conditions. Birding hazards can support your claim if standing water attracts wildlife or creates slip risks. Request repairs in writing promptly.

Can Low Spots Reduce a Slab’s Lifespan?

Yes, low spots can reduce a slab’s lifespan because they drive water pooling, freeze-thaw stress, surface scaling, and joint deterioration. You’ll see faster wear where trapped water carries salts, oils, or debris into microcracks. If you ignore drainage errors, you invite cracking, curling, corrosion, and softening of the subbase. Use laser grading, digital slope verification, and early correction to keep runoff moving and protect structural performance throughout service life.

Do Sealers Make Standing Water Problems Worse?

Yes—why risk turning a drainage flaw into a durability issue? Sealers don’t create low spots, but sealer effects can worsen water pooling by reducing surface absorption and slowing evaporation. You’ll see longer periods of wetness, greater slip risk, and higher freeze-thaw stress if water sits. Use breathable sealers, verify slope before application, and correct depressions first. You’ll get better protection when drainage works with the coating rather than against it.

Conclusion

You can prevent most concrete birdbaths by controlling grade, slope, screeding, and finishing from the start. Even a 1/8-inch low spot can hold water, and the Portland Cement Association recommends at least 1/4 inch of fall per foot for exterior slabs exposed to drainage. Don’t rely on troweling to fix elevation errors. Check forms, strike off accurately, and verify drainage before curing. If water ponds after placement, repair it before freeze-thaw damage starts.

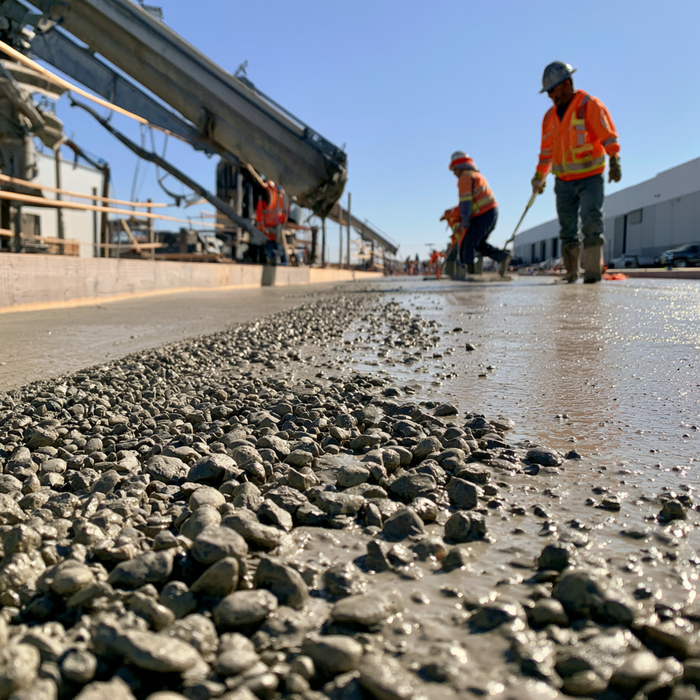

You hit FF 50 by planning the slab before concrete arrives. Use a consistent, finishable mix, controlled delivery spacing, and a crew assigned to strike-off, vibration, floating, and finishing. Prepare a uniform, compacted subgrade, set screed controls tightly, and manage head speed, vibration, bleed water, and timing. Don’t add water to chase flatness. Measure with calibrated ASTM E1155 profiling within 24 hours, map deviations, correct peaks or lows, and you’ll see what matters next.

What FF 50 Means for Commercial Slabs

FF 50 defines a floor flatness target that limits how much a concrete slab surface can rise or fall over short distances, typically measured under ASTM E1155 using the F-number system. You use it to quantify local waviness that affects lift trucks, robotics, racking, and precision buildouts. Higher F-numbers mean tighter tolerances; FF 50 signals a demanding commercial slab, not a superflat aisle, but well above routine flatwork. You should treat it as a performance requirement tied to serviceability, installation speed, and automation readiness. Think like control theory: measure variation, reduce error, and verify feedback with timely testing. Pair flatness expectations with moisture management because curling, shrinkage, and vapor drive can distort profiles after finishing. FF 50 gives you a numeric target for quality, accountability, and future-ready operations.

Plan Mix, Crew, and Pour Sequence for FF 50

Before concrete reaches the pump, you need a placement plan that matches the mix, crew capacity, equipment, and joint layout to the FF 50 target. Start with a plan mix that supports finishability, stable slump, controlled set, and minimal bleed. Don’t chase flatness with water; tune admixtures, delivery spacing, and batch consistency.

Build your crew schedule around continuous operations. Assign dedicated strike-off, vibrating, raking, checking, floating, and finishing roles, then verify backup labor for delays. Your equipment setup should place lasers, screeds, pans, straightedges, and ride-on machines where operators won’t cross fresh work.

Define the pour sequence by strip width, access, and joint timing. Keep placements narrow enough for control, move predictably, and protect wet edges so each pass supports measurable flatness.

Prepare the Subgrade to Prevent Flatness Problems

Why does subgrade prep matter to flatness? Because every FF 50 slab reflects what’s beneath it. You can’t correct pumping, soft spots, or differential support after placement. Start subgrade preparation by proof-rolling, undercutting unstable zones, and compacting to specified density with uniform bearing. Verify elevations using digital layout tools, not guesswork, and remove ruts before installing the vapor barrier.

Moisture control is equally critical. Keep the base damp, not saturated, so it won’t rob water from the mix or create bleed variability. Protect prepared areas from rain, traffic, and contamination. Seal penetrations, lap membranes cleanly, and repair tears immediately. When you build a stable, uniform platform, you reduce settlement, curling risk, and random slab distortion before concrete arrives on site. This precision supports innovative tight-tolerance delivery.

Control Screeding and Finishing for FF 50

A stable subgrade provides the platform, but screeding and finishing determine whether you preserve that accuracy during placement. Set rail elevations with tight controls, then keep your laser screed path consistent, overlapped, and free of abrupt stops. You’ll protect FF 50 targets by managing head speed, concrete head pressure, and vibration timing as a single system, not as separate tasks.

Don’t overwork the surface. After strike-off, evaluate bleed water, set, and paste quality before each pass. Use pans and blades only when the slab can support them without tearing or trapping water. Keep finishers moving in planned patterns, not reactive loops. A controlled screed finish depends on disciplined sequencing, clean edges, and minimal handwork. Treat every pass as a flatness decision, because it is.

Measure FF 50 and Correct Slab Variations

How do you know you’ve actually achieved FF 50? You verify it early, with calibrated profiling equipment and a defined test grid. Don’t wait until turnover. Measure FF50 as soon as the slab can support testing traffic without surface damage, typically within 24 hours. Capture continuous elevation data, review run charts, and isolate local deviations before trades load the floor.

When results miss target, act fast. Use the data to map high spots, low spots, joint curl, and finishing waves. Then select slab corrections that match the defect: precision grinding for peaks, cementitious topping for shallow lows, or targeted removal and replacement for severe variation. Close the loop by retesting corrected zones. You’re not guessing flatness; you’re validating performance with measurable, repeatable control.

Frequently Asked Questions

Does FF 50 Increase Construction Costs Significantly?

Yes, FF 50 can raise construction costs, but not always considerably. You’ll pay more for skilled crews, optimized mix design, laser screeding, tighter finishing windows, and additional quality checks. The premium depends on slab size, schedule, access, and risk tolerance. When tight tolerance requirements support automation, robotics, or high-rack storage, the added flatness costs often protect performance and reduce rework. You should price FF 50 early, not as a late upgrade.

How Long Does an FF 50 Slab Typically Last?

An FF 50 slab typically lasts 30–50 years when it is designed, placed, cured, and maintained correctly. FF50 durability depends on concrete mix quality, joint layout, load exposure, surface wear, moisture control, and maintenance discipline—not flatness alone. You’ll preserve performance by controlling traffic loads, sealing joints, repairing cracks early, and preventing chemical attack. FF50 certification verifies initial floor flatness, but ongoing service life comes from structural design and care.

Is FF 50 Required by Building Codes?

Not usually; FF 50 is more of a performance refinement than a construction code mandate. You typically specify it when operations need tighter flatness tolerance, such as robotics, high-bay racking, or polished concrete. You’ll find codes focus on safety, strength, durability, and accessibility, not FF numbers. If your project requires FF 50, include it in the specifications, verify it through ASTM E1155 testing, and coordinate finishing methods early.

Can FF 50 Improve Warehouse Equipment Performance?

Yes, FF 50 can improve the performance of warehouse equipment. You reduce floor-induced vibration, lift truck mast sway, pallet instability, and wheel chatter, especially for forklifts, order pickers, AGVs, and AMRs. The FF 50 relevance grows as you increase travel speeds, rack heights, and automation. Its warehouse impact includes smoother navigation, tighter sensor readings, less maintenance, better operator control, and improved throughput. You’ll still need proper joints, durability, and traffic-specific tolerances.

Who Is Responsible for Certifying FF 50 Compliance?

An independent testing agency typically certifies compliance with FF 50. You assign certification responsibilities in the project specifications, defining who measures, reports, and approves results. Your contractor places and finishes the slab, but you shouldn’t let them self-certify. You’ll use ASTM E1155 testing, calibrated equipment, and third-party verification to confirm floor flatness. This approach gives you defensible data, reduces disputes, and supports high-performance warehouse automation and equipment reliability.

Conclusion

Hitting FF 50 isn’t luck; it’s disciplined slab control. You plan the mix, pour sequence, subgrade, screeding, finishing, and testing before concrete shows up. If you’re thinking that level of flatness sounds too fussy for a commercial floor, remember: correcting waves, joints, and equipment issues later costs more. Set tolerances early, measure fast, adjust immediately, and document results. When you control each step, you can place flatter slabs consistently, not just occasionally.

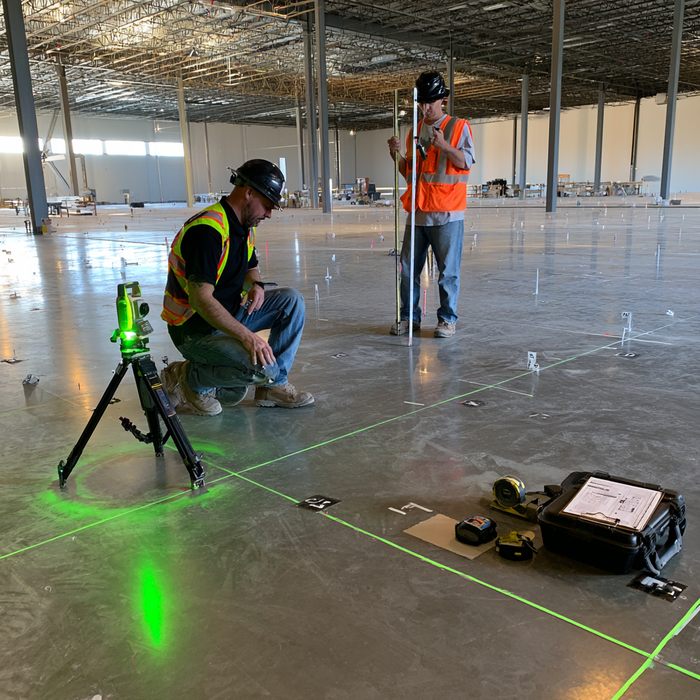

You map a slab by tying every elevation shot to a controlled benchmark before placement. Set a stable benchmark, calibrate your laser level or total station, then measure grid intersections, edges, penetrations, and transitions. Record point IDs, elevations, time stamps, and surface notes. Recheck against the benchmark, repeat suspect shots, and mark high or low areas before concrete locks errors in place. This process exposes tolerance issues early and sets up the subsequent steps.

Know What a Slab Height Survey Prevents

Before you place concrete, a slab height survey prevents small elevation errors from becoming costly structural and finish problems. You verify design elevations before wet concrete locks mistakes into the building. You catch high spots that reduce cover, low spots that create ponding, and transitions that violate tolerances at doors, drains, embeds, and equipment pads. You also reduce rework, grinding, topping, schedule claims, and disputes between trades.

You protect performance by comparing planned grades against field conditions with disciplined checks. Don’t ignore calibration pitfalls; an unverified instrument can shift every reading and disguise systematic error. Apply surveying ethics: record honest measurements, flag uncertainty, and report deviations before placement pressure forces shortcuts. When you survey early, you turn elevation control into measurable risk reduction and smarter construction decisions.

Gather Your Slab Mapping Tools

Once you know what the survey must prevent, assemble tools that can measure, verify, mark, and document slab elevations without guesswork. Start tool gathering with a calibrated laser level, rotary receiver, tripod, grade rod, tape, chalk, marker, straightedge, and digital field tablet. Add spare batteries, charging leads, protective cases, and lens wipes so the workflow doesn’t stall mid-grid. Use a measuring wheel or layout tape to space points consistently across the pour area. Keep spray paint, tags, or keel crayons ready for durable point identification. For Survey accuracy, include a second verification device, such as an optical level or digital level, to cross-check critical readings. Capture each elevation in structured software or in a field log, with point IDs, timestamps, and notes on surface conditions.

Set Benchmarks for the Height Survey

After you’ve gathered the equipment, establish at least one permanent benchmark outside the pour area that won’t be disturbed by formwork, traffic, excavation, or concrete placement. Choose a stable surface: a column base, an embedded anchor, a curb, or a driven pin, all protected from impact. Assign it a fixed elevation relative to the project datum, then clearly label it with durable paint or a weatherproof tag.

Verify benchmark calibration before field use. Check your laser, optical level, receiver, and grade rod against the point, recording any offset in your survey log. If you use multiple instruments, confirm tool consistency by comparing readings from each setup at the same benchmark. Lock the reference in your digital model or layout app so every height decision traces back to a single controlled source. Document date, operator, instrument serial numbers.

Measure Elevations Across the Slab Grid

Start at the benchmark and shoot elevations at each grid intersection, control joint line, drain location, doorway, embed, and any point where the slab must meet a fixed elevation. Move in a consistent pattern so you don’t skip cells or double-record readings. Use a laser level, robotic total station, or digital level tied to your benchmark, and log each point with a unique grid ID. During slab mapping, keep the rod plumb, seat it firmly, and note surface conditions that could affect measurement quality. Capture design elevation, measured elevation, and offset in your elevation survey file. If you’re using field software, sync points to the plan in real time so the crew can see spatial trends before placement planning begins. Keep records clean.

Verify Readings and Mark High or Low Spots

Before you trust the slab map, verify the readings against your benchmark and known control points. Recheck suspect grid nodes, then compare repeat shots to your allowable floor-flatness criteria. If values drift, start calibrating instruments: confirm laser level stability, rod integrity, receiver sensitivity, and tripod lock. Keep the workflow digital when possible, syncing field data to your model for rapid QA.

Next, focus on verifying tolerances at each grid intersection. Flag points outside specification with durable paint, tags, or layout chalk, using consistent symbols for high and low conditions. Marking anomalies in the field lets crews grind, shim, or adjust formwork before placement. Record station ID, elevation variance, timestamp, and operator notes while documenting deviations. You’ll create a traceable correction path before concrete arrives on site.

Frequently Asked Questions

How Long Does a Typical Slab Height Survey Take?

You’ll typically finish a slab height survey in 1–4 hours, depending on slab size, grid density, access, and required tolerance. Your survey duration increases if you need tighter point spacing, complex penetrations, or multiple benchmarks. You’ll shorten field time with digital levels, laser scanners, or robotic total stations, but equipment calibration must happen first. Plan setup, control verification, data capture, and QA checks as one continuous workflow.

Who Should Perform a Slab Height Survey?

You should hire a licensed surveyor or qualified layout technician—your Daedalus, but with lasers—to perform slab surveying. They’ll use calibrated total stations, digital levels, or 3D scanners to verify height accuracy, control points, benchmarks, and tolerances. You shouldn’t rely on untrained crews for critical elevations. Choose someone who documents data methodically, flags deviations early, and integrates results into BIM or digital workflows so your pour starts with certainty.

When Is the Best Time to Survey Before Pouring?

Survey after subgrade preparation, formwork, reinforcement, embeds, and vapor barriers are in place, but before concrete scheduling is locked in. This ideal timing lets you verify elevations, slopes, and tolerances while corrections remain fast and low-cost. Ensure site accessibility for scanners, total stations, or robotic instruments, with clear sightlines and stable benchmarks. Don’t wait until trucks arrive; you’ll limit adjustment options, disrupt placement sequencing, and compromise data-driven quality control.

How Much Does a Professional Slab Height Survey Cost?

You’ll typically pay $500–$2,000 for a professional slab-height survey, depending on the area, tolerances, access, and required deliverables. Your slab cost rises with high-density scan grids, robotic total station work, 3D point clouds, or digital elevation models. You’ll reduce the risk of rework by aligning survey timing with formwork, subbase prep, and embeds being set, but before concrete placement. For complex pours, you should request calibrated equipment, control benchmarks, and QA documentation.

Can Weather Conditions Affect Slab Height Survey Accuracy?

Yes, weather conditions can affect the accuracy of slab height surveys. You’ll see weather effects from temperature swings, wind, rain, humidity, and solar heating, which can distort readings, shift benchmarks, or destabilize tripods. You should schedule surveys during stable conditions, shield instruments, and verify control points. Maintain strict equipment calibration before and during fieldwork. With digital levels, laser scanners, or robotic total stations, you’ll capture cleaner data and reduce rework.

Conclusion

You’ll prevent costly rework by mapping slab elevations before the pour. Industry estimates show concrete corrections can consume up to 15% of a project’s total cost, making precise height surveys a practical control step. Set benchmarks, grid the slab, record readings, and mark deviations before placement begins. When you verify each elevation methodically, you reduce tolerance failures, drainage issues, and finish delays. Accurate slab mapping gives you cleaner data and a flatter, more reliable pour.
