How to Map a Slab: Conducting an Accurate Height Survey Before Your Ne

You map a slab by tying every elevation shot to a controlled benchmark before placement. Set a stable benchmark, calibrate your laser level or total station, then measure grid intersections, edges, penetrations, and transitions. Record point IDs, elevations, time stamps, and surface notes. Recheck against the benchmark, repeat suspect shots, and mark high or low areas before concrete locks errors in place. This process exposes tolerance issues early and sets up the subsequent steps.

Know What a Slab Height Survey Prevents

Before you place concrete, a slab height survey prevents small elevation errors from becoming costly structural and finish problems. You verify design elevations before wet concrete locks mistakes into the building. You catch high spots that reduce cover, low spots that create ponding, and transitions that violate tolerances at doors, drains, embeds, and equipment pads. You also reduce rework, grinding, topping, schedule claims, and disputes between trades.

You protect performance by comparing planned grades against field conditions with disciplined checks. Don’t ignore calibration pitfalls; an unverified instrument can shift every reading and disguise systematic error. Apply surveying ethics: record honest measurements, flag uncertainty, and report deviations before placement pressure forces shortcuts. When you survey early, you turn elevation control into measurable risk reduction and smarter construction decisions.

Gather Your Slab Mapping Tools

Once you know what the survey must prevent, assemble tools that can measure, verify, mark, and document slab elevations without guesswork. Start tool gathering with a calibrated laser level, rotary receiver, tripod, grade rod, tape, chalk, marker, straightedge, and digital field tablet. Add spare batteries, charging leads, protective cases, and lens wipes so the workflow doesn’t stall mid-grid. Use a measuring wheel or layout tape to space points consistently across the pour area. Keep spray paint, tags, or keel crayons ready for durable point identification. For Survey accuracy, include a second verification device, such as an optical level or digital level, to cross-check critical readings. Capture each elevation in structured software or in a field log, with point IDs, timestamps, and notes on surface conditions.

Set Benchmarks for the Height Survey

After you’ve gathered the equipment, establish at least one permanent benchmark outside the pour area that won’t be disturbed by formwork, traffic, excavation, or concrete placement. Choose a stable surface: a column base, an embedded anchor, a curb, or a driven pin, all protected from impact. Assign it a fixed elevation relative to the project datum, then clearly label it with durable paint or a weatherproof tag.

Verify benchmark calibration before field use. Check your laser, optical level, receiver, and grade rod against the point, recording any offset in your survey log. If you use multiple instruments, confirm tool consistency by comparing readings from each setup at the same benchmark. Lock the reference in your digital model or layout app so every height decision traces back to a single controlled source. Document date, operator, instrument serial numbers.

Measure Elevations Across the Slab Grid

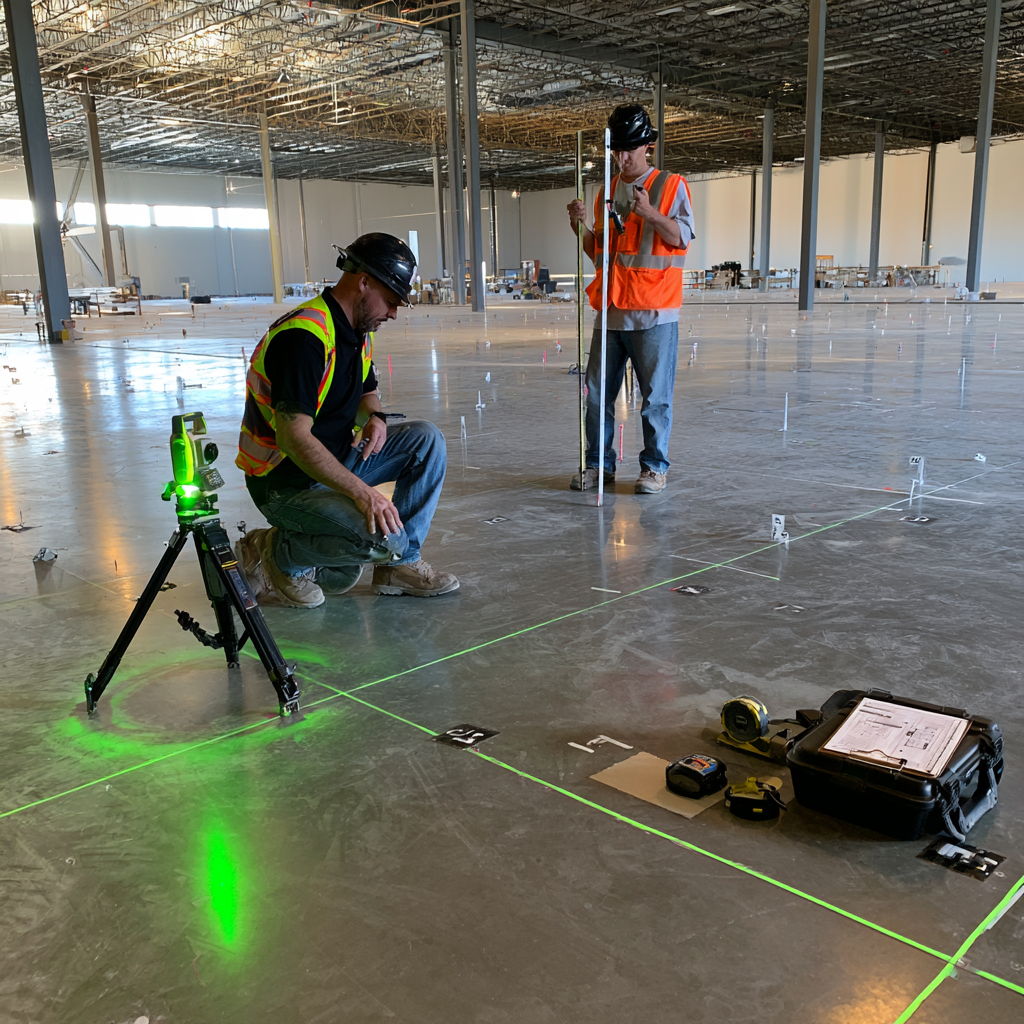

Start at the benchmark and shoot elevations at each grid intersection, control joint line, drain location, doorway, embed, and any point where the slab must meet a fixed elevation. Move in a consistent pattern so you don’t skip cells or double-record readings. Use a laser level, robotic total station, or digital level tied to your benchmark, and log each point with a unique grid ID. During slab mapping, keep the rod plumb, seat it firmly, and note surface conditions that could affect measurement quality. Capture design elevation, measured elevation, and offset in your elevation survey file. If you’re using field software, sync points to the plan in real time so the crew can see spatial trends before placement planning begins. Keep records clean.

Verify Readings and Mark High or Low Spots

Before you trust the slab map, verify the readings against your benchmark and known control points. Recheck suspect grid nodes, then compare repeat shots to your allowable floor-flatness criteria. If values drift, start calibrating instruments: confirm laser level stability, rod integrity, receiver sensitivity, and tripod lock. Keep the workflow digital when possible, syncing field data to your model for rapid QA.

Next, focus on verifying tolerances at each grid intersection. Flag points outside specification with durable paint, tags, or layout chalk, using consistent symbols for high and low conditions. Marking anomalies in the field lets crews grind, shim, or adjust formwork before placement. Record station ID, elevation variance, timestamp, and operator notes while documenting deviations. You’ll create a traceable correction path before concrete arrives on site.

Frequently Asked Questions

How Long Does a Typical Slab Height Survey Take?

You’ll typically finish a slab height survey in 1–4 hours, depending on slab size, grid density, access, and required tolerance. Your survey duration increases if you need tighter point spacing, complex penetrations, or multiple benchmarks. You’ll shorten field time with digital levels, laser scanners, or robotic total stations, but equipment calibration must happen first. Plan setup, control verification, data capture, and QA checks as one continuous workflow.

Who Should Perform a Slab Height Survey?

You should hire a licensed surveyor or qualified layout technician—your Daedalus, but with lasers—to perform slab surveying. They’ll use calibrated total stations, digital levels, or 3D scanners to verify height accuracy, control points, benchmarks, and tolerances. You shouldn’t rely on untrained crews for critical elevations. Choose someone who documents data methodically, flags deviations early, and integrates results into BIM or digital workflows so your pour starts with certainty.

When Is the Best Time to Survey Before Pouring?

Survey after subgrade preparation, formwork, reinforcement, embeds, and vapor barriers are in place, but before concrete scheduling is locked in. This ideal timing lets you verify elevations, slopes, and tolerances while corrections remain fast and low-cost. Ensure site accessibility for scanners, total stations, or robotic instruments, with clear sightlines and stable benchmarks. Don’t wait until trucks arrive; you’ll limit adjustment options, disrupt placement sequencing, and compromise data-driven quality control.

How Much Does a Professional Slab Height Survey Cost?

You’ll typically pay $500–$2,000 for a professional slab-height survey, depending on the area, tolerances, access, and required deliverables. Your slab cost rises with high-density scan grids, robotic total station work, 3D point clouds, or digital elevation models. You’ll reduce the risk of rework by aligning survey timing with formwork, subbase prep, and embeds being set, but before concrete placement. For complex pours, you should request calibrated equipment, control benchmarks, and QA documentation.

Can Weather Conditions Affect Slab Height Survey Accuracy?

Yes, weather conditions can affect the accuracy of slab height surveys. You’ll see weather effects from temperature swings, wind, rain, humidity, and solar heating, which can distort readings, shift benchmarks, or destabilize tripods. You should schedule surveys during stable conditions, shield instruments, and verify control points. Maintain strict equipment calibration before and during fieldwork. With digital levels, laser scanners, or robotic total stations, you’ll capture cleaner data and reduce rework.

Conclusion

You’ll prevent costly rework by mapping slab elevations before the pour. Industry estimates show concrete corrections can consume up to 15% of a project’s total cost, making precise height surveys a practical control step. Set benchmarks, grid the slab, record readings, and mark deviations before placement begins. When you verify each elevation methodically, you reduce tolerance failures, drainage issues, and finish delays. Accurate slab mapping gives you cleaner data and a flatter, more reliable pour.
