NIVCOMP DIGITAL LEVEL

$1,299.00

NIVCOMP DIGITAL LEVEL

$1,299.00
description

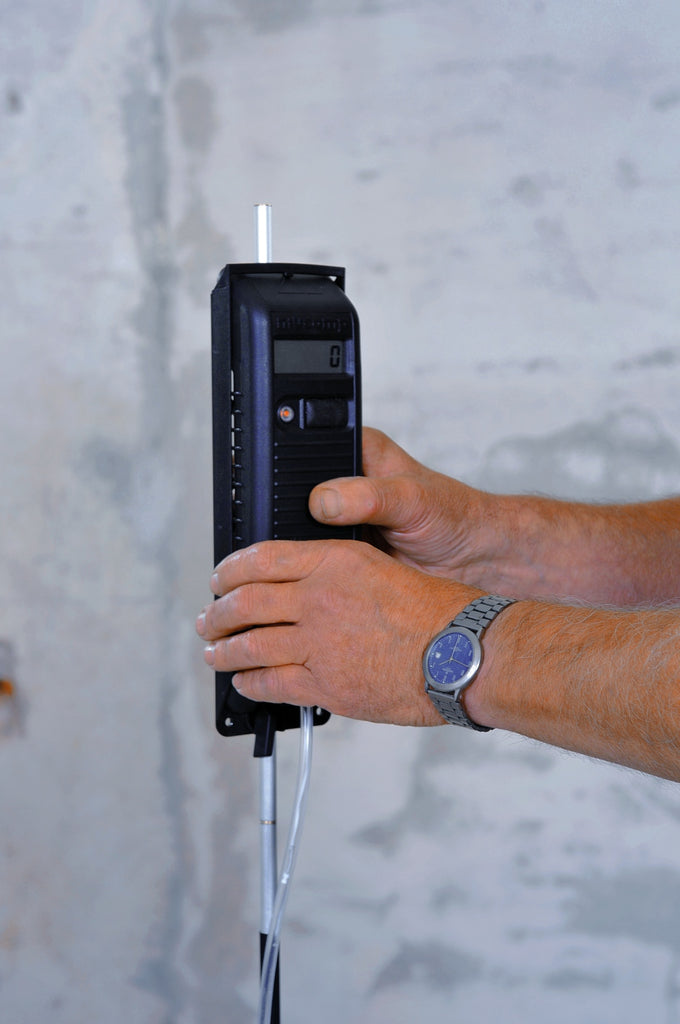

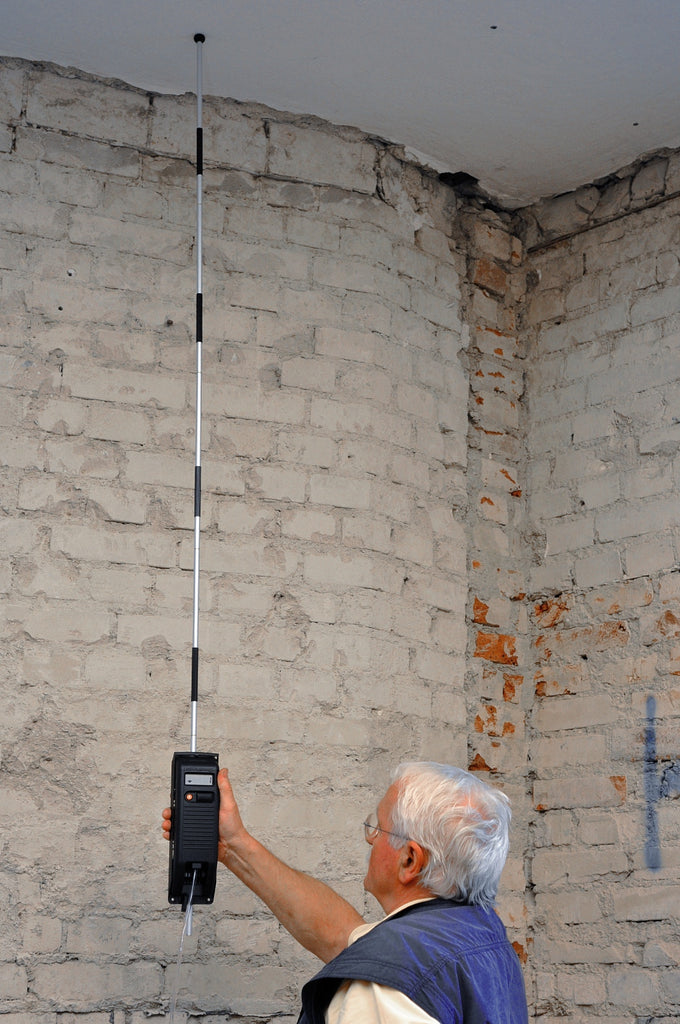

Enables a user, working alone, to easily make precision level and elevation measurements in inches or millimeters. Reaches a 150 ft diameter and works around corners and obstacles (no line-of-site required). Electronically displays measurements in large, easy-to-read digits. Includes four extension rods, rod end cap, and magnetic clamp allows for stand up measurement of floors and increases the Nivcomps’s overhead reach to 8ft.  Select NIVCOMP mSD option for data logging capability.

  1. Place the orange reel on a flat, stable surface.  The reel contains a fluid reservoir which acts as a relative point of reference.
  2. Seventy-five feet of rugged, double-walled hose connects the reel to a digital, handheld unit.  Unwind enough hose to reach all measurement points.

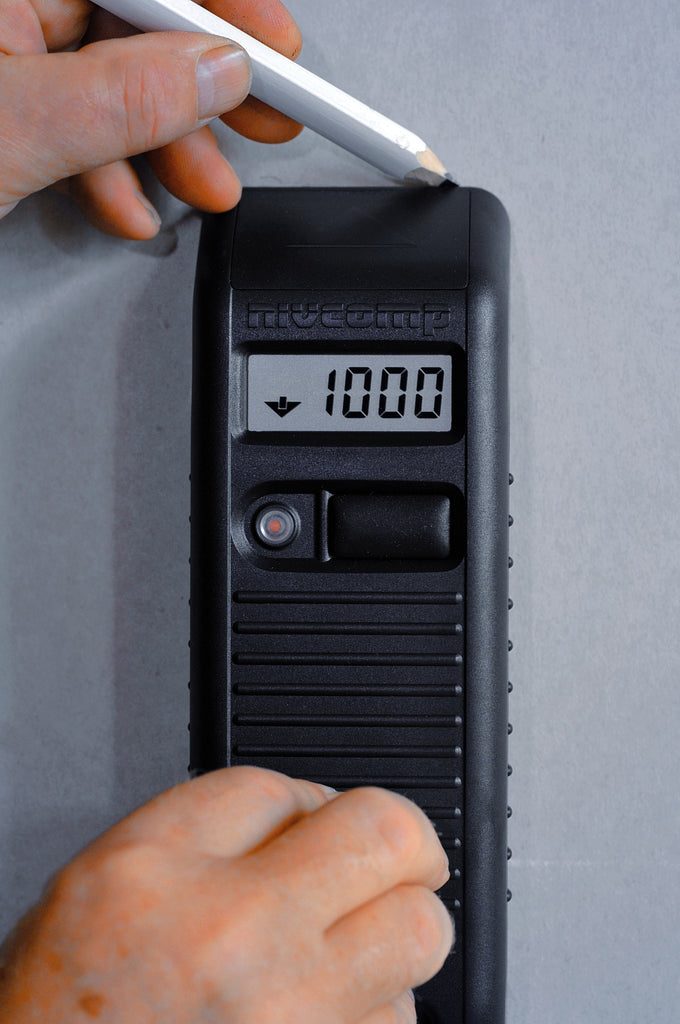

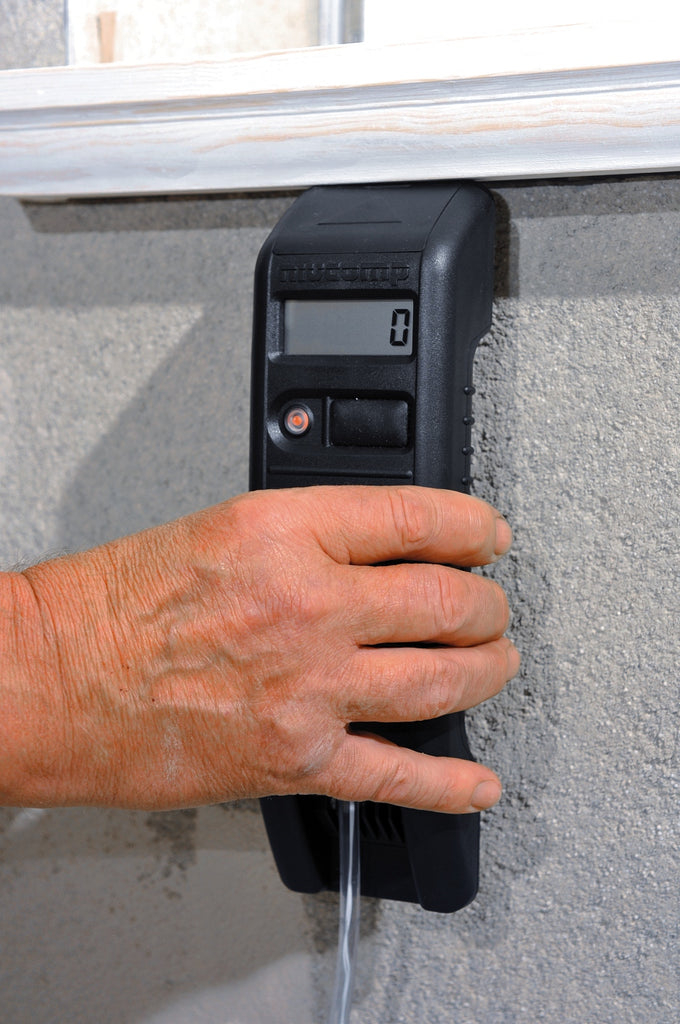

  3. Set a reference point on the handheld unit and start measuring.  The handheld unit senses changes in vertical height and displays precise level measurements.
  4. Refer to NIVCOMP Operating Manual for more details.
  5. Additionally, contact Top Level Tools to request the NIVCOMP Training Guide.

Tech Specs

  • Accuracy: + 2 mm (~1/16th in.) at max measuring point distance of 48 m (150 ft.)
  • Vertical reach: + 2.5 m (+ 8.0 ft.)
  • Measurement display: in millimeters or inches
  • Resolution: 1 mm (sign character 0.3 mm)
  • Temperature range: 0 to 35+°C (32 to 95° F)
  • Battery handheld device: 1 x AA (alkaline) 1.5V
  • Operating time on a single battery: > 250h
  • Dimensions: 450 x 420 x 150 mm (18 x 16.5 x 6 in.)
  • Weight: ~5.5 kg (~12 lbs.)
  • Certificates: CE, FCC, ROHS compliant
  • Low-emission per EMC-product-standards
