You can ruin resilient flooring or tile by pouring over wet, flexible, dirty, or poorly profiled subfloors; verify RH/CM limits and stabilize movement first. Don’t skip repairs, manufacturer-approved primer, joint sealing, or edge dams. Measure water exactly, mix mechanically, and never re-temper a batch. Maintain a continuous wet edge, spike-roll fresh material, and avoid cold joints. Finally, respect thickness and cure schedules before installing finishes. These checks help prevent costly failures early.

Check Subfloor Suitability, Moisture, and Thickness

Before mixing a self-leveling compound, confirm the subfloor can support it. Perform moisture testing with CM or RH methods and compare results with the product datasheet; many systems require RH below 75%. Excess moisture disrupts curing and adhesion, causing resilient flooring or tile failures. Follow manufacturer’s instructions for thickness limits: most products perform at 5–15 mm, while excessive depths can crack, crumble, or debond.

Assess substrate behavior, not just flatness. Non-porous substrates, including glazed tile, epoxy, and power-floated concrete, require compatible bonding technology or mechanical profiling. Don’t pour over flexible boards: rigidify timber with plywood or cement board first, or movement will fracture the leveling layer. For expansive rooms, select slow-setting or pump-grade material and sequence pours to preserve a continuous wet edge.

Clean, Repair, Prime, and Seal the Subfloor

Proper subfloor preparation determines whether a self-leveling pour bonds as designed or fails at the interface. Poor preparation turns advanced materials into expensive callbacks. Your surface preparation must remove dust, paint, adhesive residue, and loose debris before placement.

• Repair cracks, spalls, and movement with compatible epoxy or cementitious systems; leveler won’t stabilize a moving base.

• Prime porous or nonporous substrates using the manufacturer’s specified product, dilution, and open time to control suction and pinholes.

• Seal joints, gaps, and control-joint edges with flexible sealant or foam backer rod; add edge dams to prevent bleed-out and weak perimeters.

• Verify dryness against published moisture limits with a calibrated meter or ASTM/BS testing; vapor disrupts curing, adhesion, and long-term performance.

Don’t skip inspection: clean, repair, prime, and seal before pouring.

Mix Self-Leveling Compound With Exact Water Ratios

Once the primed, sealed subfloor is ready, measure mixing water exactly as the manufacturer specifies—commonly 4.0–4.5 L per 20 kg bag (about 0.20–0.23 L/kg)—then maintain that ratio for every batch. Your water-to-powder ratio governs Self-Levelling Compound rheology, strength, and finish quality. Use a graduated container, and add powder or water in the sequence the technical data sheet requires. Overwatering may improve flow initially, but it reduces compressive strength and can leave a dusty, fragile surface. Underwatering produces a stiff mix that won’t reach low areas; verify the specified creamy consistency with any supplied slump test. Use a low-speed paddle mixer for the complete mixing time, typically one to three minutes, to hydrate powder uniformly. Don’t hand-stir. Track pot-life—usually 10–20 minutes—and never re-temper material with water.

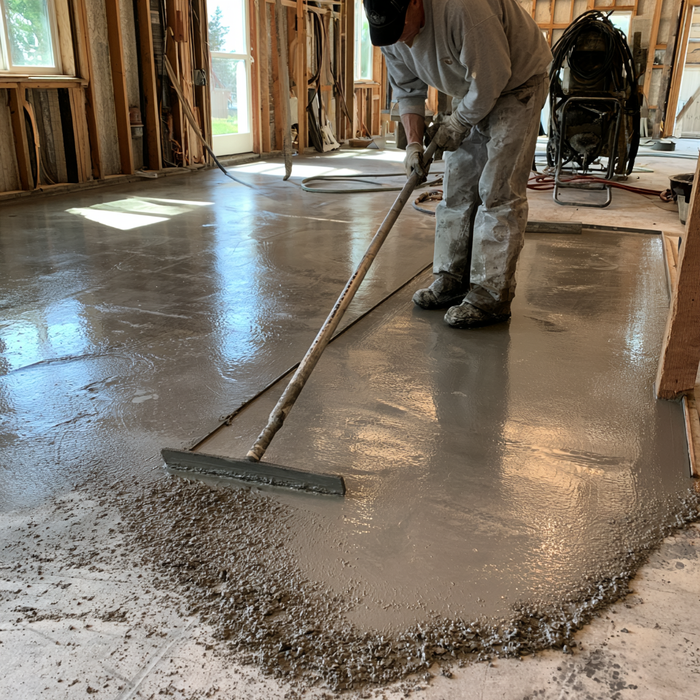

Pour Continuously to Prevent Ridges and Lumps

Pour self-leveling compound continuously so each batch meets the next while both remain fluid, maintaining a wet edge and preventing cold joints. Most mixes begin setting within 15–30 minutes, so a pause can create ridges that telegraph through vinyl or tile.

• Stage bags, water, and a paddle mixer before starting.

• Assign helpers to mix staggered batches for a continuous pour.

• Use a pump or bucket relay to keep material moving across large rooms.

• Immediately spike roll each fresh section to blend joins and release trapped air.

For areas exceeding a few hundred square feet, choose a slow-setting compound to extend your working window. Plan runs around access points so you don't trap yourself. If the surface skins during an interruption, don’t pour over it; grind or scarify the edge, re-prime it, then feather in fresh material.

Cure Fully and Fix Minor Surface Defects

Curing the self-leveling compound to the manufacturer’s specified schedule protects the floor system from adhesive failure, cracking, and movement under the finished covering. Follow documented drying and curing times: standard mixes often need 24–48 hours, while rapid-setting products may permit installation within hours. Don’t rely on touch alone; test slab moisture using ASTM F1869 or F2170 requirements.

Use a spiked roller immediately after placement and again within its working window to release air and reduce peaks. After cure, verify surface flatness with a 2-meter straightedge; LVT and tile commonly require deviations no greater than 3 mm over 2 m. To repair minor surface defects, grind high spots, vacuum dust, and clean the surface thoroughly. Apply a compatible primer, then a feathering patch at the required 3–5 mm thickness for a durable, smooth surface.

Frequently Asked Questions

What Are Common Self-Leveling Mistakes?

Common self-leveling mistakes include inadequate surface prep, skipping primer, and ignoring substrate moisture or movement. You can weaken the pour by mismeasuring water, shortening mixing time, or neglecting temperature control. Poor application technique, such as interrupted pours, creates ridges and cold joints. Don’t apply outside specified thickness ranges, omit expansion joints, or rush curing duration. Confirm manufacturer limits and plan continuous placement to protect adhesion and long-term performance.

When Not to Use Self-Leveler?

Don’t throw good money after bad: avoid self-leveler when unnecessary, such as minor surface variation within flooring tolerances. Don’t apply it over unsuitable substrates with moisture, contamination, or instability; Near active cracks; Under high slope areas; or On very thin spots below manufacturer limits. You shouldn’t use it outdoors, on vertical planes, or as a structural load-bearing layer. Specify compatible primers, vapor mitigation, and repair systems first.

How Can I Fix a Bad Self-Leveling Job?

Fix a bad self-leveling job by removing failed material to sound substrate, then vacuum thoroughly. Perform bond testing, mitigate moisture, and repair cracks before priming. Use grit blasting or grinding for edge profiling, and apply compatible surface repair mortar with controlled layer feathering at approved minimum thickness. Re-pour only with exact water ratios, paddle mixing, wet-edge placement, and spiked rolling. If movement persists, correct the substrate system first.

What Happens if You Add Too Much Water to a Self-Leveler?

Adding too much water weakens your self-leveler, increases drying time, and promotes bleeding, cracking, curling, and poor adhesive bond. You’ll disrupt mixing ratios, reduce compressive strength, and create uncontrolled flow despite improved surface tension. Verify consistency with a slump test, avoid excess air entrainment during paddle mixing, and expect possible pigment fading in colored products. Measure water precisely per the manufacturer’s data sheet for predictable thickness and performance.

Conclusion

Avoid expensive callbacks by treating self-leveling work as a system, not a shortcut. Verify subfloor strength, moisture, cleanliness, primer coverage, and pour depth before mixing. Measure water precisely, blend thoroughly, and pour continuously within the product’s working time. Let the underlayment cure before installing resilient flooring or tile, then correct pinholes or ridges. Don’t let a medieval “good enough” mindset sabotage modern performance—your finished floor depends on disciplined preparation and timing.

Stop over-pouring SLU by laser-verifying each bay’s area and average depth, then calculating bags from the product’s stated yield. Stage only that bay’s bags, plus a controlled 5–10% buffer for absorption, spills, and mixing loss. Prime and seal gaps first, set laser-level gauge strips, and mark containment bays. Measure water exactly, calibrate the pump, and recover clean fluid spills within the working window. The steps below show how to tighten each control point.

Calculate Self-Leveling Underlayment Coverage

Start by calculating the floor area and your planned average pour depth, then base the order on the exact yield listed for the SLU you’re using. Measure area in square feet, convert thickness to inches, and calculate volume: bags = (area × thickness ÷ 12) ÷ bag yield in cubic feet. A typical 50-pound bag delivers about 0.45–0.6 ft³, or 20–30 ft² at 1/4 inch, but product data overrides averages. Build your bag estimate from laser-verified elevations, not nominal slab conditions. For fills beyond standard limits, evaluate the manufacturer’s aggregate protocol; some systems reach 5 inches with approved aggregate, while unextended SLU may cap near 1.5 inches. Track priming absorption and mixing losses during trial batches, and include a documented procurement contingency. This data-first workflow prevents underordering and eliminates inflated coverage assumptions.

Add a 5–10% SLU Waste Allowance

Build a 5–10% waste allowance into your SLU order after calculating the base bag count. For a 1,000-square-foot pour at 1/4 inch requiring 40 bags, add two to four bags. Use 5% for simple, open rooms; specify 8–10% for complex layouts, long runs, or elevated placements. This reorder buffer prevents costly rush deliveries and schedule interruptions.

Refine every SLU takeoff with field data. Track actual usage by recording starting bags, leftover bags, and installed area. Isolate edge/corner waste and pump losses, which often consume the first 1–3% of material. Compare results across crews, substrates, and placement methods to establish a predictive allowance. Treat the buffer as controlled inventory, not expected loss: collect spills immediately, clean edges, and reuse uncontaminated leftover mix when feasible. That approach reduces true material waste while protecting production certainty.

Prime and Seal the Subfloor First

Before you mix the first bag, prime and seal the subfloor to control SLU flow, adhesion, and material consumption. Use the manufacturer-approved primer from Ardex, Mapei, Uzin, or your specified system. A correctly prepared surface stops self-leveling underlayment from losing water into a porous substrate, which otherwise accelerates set, disrupts flow, and drives overpour.

Seal cracks and joints, penetrations, and voids with compatible elastomeric sealant or backer rod before priming. Follow the data sheet for dilution and primer open time; many systems need 1–4 hours to dry. Applying primer too wet or too dry changes bonding behavior. On high-suction surfaces, prime and seal with a second coat or approved bonding slurry. Run a small mock pour in each area to validate compatibility, flow rate, and coverage before committing material.

Mark Self-Leveling Underlayment Pour Bays

Mark each SLU pour bay with paint or tape 12–18 inches wide and label the target thickness so your crew has fixed placement limits. Install removable screed rails or cleats at 3–6 foot intervals to control flow at edges while the material self-levels. Before pouring, stage the exact bag count using manufacturer coverage—about 20–30 sq. ft. per 50-lb bag at 1/4 inch—and post the mix ratio and pot life at each bay. This is the old-fashioned method that LEVELPEGS can help with most. We mark the depths in 3-10 ft increments and place a cut LEVELPEG to indicate the depth at every interval.

Plan Pour Bay Boundaries

Pour-bay planning controls where self-leveling underlayment flows and lets your crew place each batch within its workable window. Define pour bay boundaries using 1–2-inch temporary plastic or metal screeds at planned widths to contain SLU flow and prevent spillover. Size marked bays around actual batch yield: at 1/4 inch, many mixes cover 20–30 square feet per 50-pound bag. This data-driven layout reduces stop/start seams and avoids surplus material.

Apply paint or tape as high‑visibility lines, add bay IDs, and map cleat locations, outlet ports, and expansion-joint treatments before pumping. Pre‑wet and prime only within each bay, then seal drains, gaps, and control joints with silicone or tape. Finally, coordinate pump output and mixing cycles with bay capacity, targeting 10–20-minute work windows so crews fill and finish before fluidity drops.

Install Clear Edge Markers

Clear, high-contrast edge markers give pump operators and finishers an immediate visual limit for each SLU pour bay, helping prevent material from flowing into adjacent areas. Build a visible containment system before pumping self-leveling underlayment:

1. Apply 2–3-inch fluorescent tape or plastic battening around pour bays for instant boundary recognition.

2. Secure edge markers flush to the substrate every 12–18 inches along long runs, eliminating gaps where material can seep and feather.

3. Install temporary stop rails in aluminum or PVC, 1/4–3/8 inch tall, matched to your planned placement depth.

4. Color-code markers: green for 1/4 inch, yellow for 1/2 inch, and red for depths above 1 inch.

Inspect rails and tape immediately before each pour. Replace lifted sections, gaps, or damaged stop rails. This low-cost visual control reduces material waste, protects adjacent zones, and keeps placement disciplined.

Verify Volume Before Pouring

Verifying volume before mixing prevents the most common SLU placement error: sending excess material into a bay that can’t contain it. Measure the bay area, confirm the target depth, and calculate the required SLU from the manufacturer’s coverage rate. A 50-pound bag may cover 20–30 square feet at 1/4 inch, but calculate each bay rather than relying on estimates.

Mark pour bays with chalk or tape, then label target depth, volume in liters, and bags required. Install pre-cut stopping controls, such as cleats or screed rails, at the planned elevation to contain flow. Stage bags by bay and mix only the calculated quantity for the next zone; with 10–20 minutes of working time, surplus creates risk. Use a check sheet listing dimensions, thickness, bags required, and bags used. Assign one worker to validate each bay before release.

Set Gauge Strips for Target Depth

Before mixing, install gauge strips at the planned finished elevation to create physical depth controls for the SLU. You’ll turn estimated coverage into a repeatable, measurable pour.

1. Fasten perimeter gauge strips, 1/4–3/8 inch hardwood or plastic, to maintain the specified 1/4–1/2 inch gap.

2. Place intermediate gauge strips every 4–6 feet; tighten spacing on uneven substrates or deeper fills so your gauge rake bridges reliably.

3. Set every strip with a laser level, holding ±1/16 inch for thin applications and ±1/8 inch for thicker fills.

4. Choose screwed removable cleats or foam blocks, then patch their small voids after removal.

For pours above 1 inch or variable slabs, add depth markers on barrels and calibrate pump flow. These redundant controls prevent the pump from exceeding your gauge-defined volume and protect material margins.

Mix SLU With Exact Water Ratios

Exact water dosing controls SLU flow, spread, and yield, so measure every batch to the manufacturer’s stated water-to-bag ratio—commonly 4.5–6.0 pints (2.1–2.8 L) per 50-lb (22.7-kg) bag. Use a calibrated measuring jug or fixed-volume bucket; don’t estimate by eye. Measured mixing keeps viscosity, working time, and coverage predictable while preventing excess spread that consumes unnecessary material.

Record ambient temperature before mixing, then adjust water only within product tolerances. When scaling production, weigh powder and calculate total water by multiplying bags by the specified liters per bag. For mechanized placement, configure pump dosing to the exact rate and verify output with a test batch before the full pour. This controlled workflow gives you repeatable rheology, cleaner forecasting, and tighter material-use data across every placement.

Recover Clean, Fresh SLU Immediately

During placement, assign one or two workers to trail the pump or trolley and capture clean, fresh SLU spills before they begin to set. This recovery role turns drips into usable material instead of hardened waste.

1. Keep a collection bucket or a clean wheelbarrow within arm’s reach of the placement path.

2. Collect recovered SLU from fluid ribbons, then transfer within working time—typically 10–20 minutes.

3. Clean edges and corners, plus formwork, continuously to prevent SLU setting in thin, costly accumulations.

4. Label and reuse only uncontaminated material; avoid contamination from debris, cured chunks, or added water.

After finishing, use immediate water curing, such as mist or damp burlap, only when the manufacturer permits rework. Otherwise, segregate remaining material for approved secondary use or disposal. Track recovered volume per pour to quantify savings and refine crew positioning.

Frequently Asked Questions

Where to Stop Concrete Pour in Slab?

Stop the concrete pour at planned control joints, curb lines, slab changeover points, or approved construction joints. Set forms to verified finish grade and use laser checks to control elevation. Maintain required reinforcement overlap where pours terminate. Plan edge jointing before placement, then schedule saw cutting at the specified curing window. Don’t remove forms until concrete reaches required strength; premature form removal can damage edges, misalign joints, and compromise tolerances.

What Are Common Mistakes When Pouring a Concrete Driveway?

Common mistakes include Incorrect slope, which traps water; Improper formwork, which causes edge failure; and undertamping, which leaves voids. You’ll weaken concrete through overwatering, Weak reinforcement, or Debris inclusion. Avoid Cold joints by placing continuously and coordinating truck timing. Poor curing reduces surface strength and crack resistance. Verify subgrade compaction, use the specified mix design, maintain joint spacing, and monitor placement with laser-grade controls.

How to Mess up Concrete?

You can mess up concrete by introducing excess water, which lowers strength and raises shrinkage. Avoid overmixing, slump, segregation, and uneven consolidation, since each creates weak zones. Use clean inputs; contaminated aggregate compromises bond and durability. Don’t create cold joints by delaying placement, and don’t rush improper curing. If you use insufficient reinforcement, cracking accelerates under load. Track water-cement ratio, temperature, vibration time, and cure moisture to prevent predictable failures.

Conclusion

You’ll cut SLU waste when you calculate coverage accurately, add only a 5–10% allowance, and control every pour variable. Prime, seal, mark bays, and set gauge strips so material reaches the specified depth—not beyond it. Measure water precisely to protect flow and yield, then recover clean fresh mix immediately. These steps turn guesswork into repeatable production. Don’t let over-pouring become your project’s telegram from 1925: expensive, avoidable, and too late to retract.

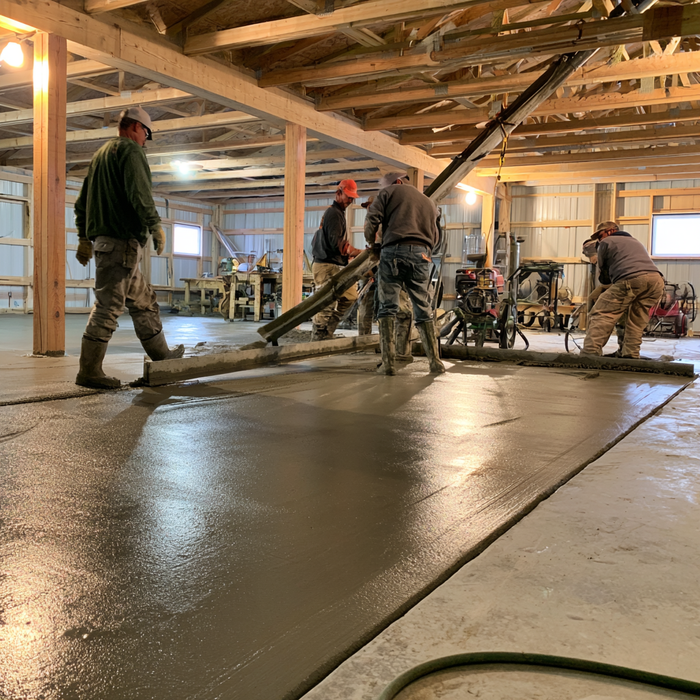

Cheap floor pins cost you money when weak adhesive, thin bases, or brittle heads let them shift, sink, tilt, or break under traffic, hose pull, vibration, and screed pressure. You lose your laser-set elevation, create thin spots and over-pours, and interrupt the wet edge for resets. LEVELPEGS® provide locked, fixed-height gauge points with stable adhesive-backed bases for SLU, toppings, and patches. Comparing material stability, adhesion, spacing, and failure costs shows where first-pass accuracy pays off.

What LEVELPEGS® Do During a Pour

During a pour, LEVELPEGS® give your crew fixed, laser- or digitally verified elevation checkpoints that control finished height as the screed passes over the slab. Their locked heads resist movement from traffic, hose pull, and vibration, so you maintain dependable control while concrete is wet. Place pegs 3–5 feet apart, with tighter 12–18-inch spacing at edges and shifts, to support consistent grade and a continuous wet edge. You can run straight-line rows in the pour direction to reduce thin spots, cold joints, and costly rework. LEVELPEGS® also verify thickness before SLU, epoxy, or cementitious topping installation, helping protect threshold clearances and limit over-pour waste. Don’t set checkpoints too Far Apart; choose the right spacing for slab geometry, placement rate, and finish requirements. That discipline saves time, material, and correction costs.

1. LEVELPEGS are manufactured with proprietary thermoplastic “memory” resin designed to snap back upright if bent by inadvertent trade traffic. Several copycat products are molded with inferior materials.

2. The self-adhering adhesive strip is engineered to hold LEVELPEGS down securely to subfloor substrates such as concrete, wood, and other common structural floor materials. Clean the substrate before adhering, of course, but once clean, LEVELPEGS typically adhere strongly without additional adhesives.

3. The LEVELPEG design has been reliably proven over 20 years by the most demanding and experienced installers of self-leveling underlayments. Don’t waste your time and money on the lookalikes.  If your crew is going to go through all the time and effort required to perform an elevation survey and pin the floor, why not use a reliable standard - the original and battle-tested LEVELPEGS?

How LEVELPEGS® Set Accurate Pour Height

LEVELPEGS® set accurate pour height by giving you fixed elevation gauges established with a laser or digital level before placement begins. You cut each peg top to the target elevation, adhere it securely, and lock the head so it can’t drift under foot traffic, hose pull, or vibration. During placement, your crew screeds until the material kisses each tip, creating repeatable thickness control across the entire floor.

Place distributed checkpoints at roughly 3–5 feet apart, tightening spacing to 12–18 inches near edges and transitions. This layout helps you maintain specified tolerances across rooms, avoid thin areas that can compromise bond strength, and prevent costly over-pour. Continuous checks against peg heads also verify compatibility requirements for self-leveling underlayments, epoxies, and cementitious toppings while supporting documented quality assurance.

LEVELPEGS® vs. Knock-Offs: What to Compare

When you compare LEVELPEGS® with cheap knock-offs, verify material stability, cut-height accuracy, and snap-back performance after cutting. Check that the adhesive and locked head hold firmly through vibration so your height control doesn’t drift during the pour. Paying more upfront for reliable gauges can prevent over-pours, rework, and costly grade corrections.

Material Stability And Accuracy

Material stability and dimensional accuracy determine whether your height-control system holds the specified SLU or topping depth from setup through cure. LEVELPEGS® use resilient, precision-cut materials that support material longevity, dimensional consistency, and thermal stability. You can set elevation with a laser or digital level and expect reliable tip height during vibration, hose pull, screeding, and cure. Cheap copies may creep, compress, or vary between pins, creating thin areas, wasted material, and specification risk.

• Verify tight manufacturing tolerances at every peg height.

• Choose snap-back materials that resist deformation under load.

• Confirm resistance to vibration and lateral movement.

• Check that pegs cut cleanly for precise field adjustment.

• Compare lifecycle cost, not only unit price.

With LEVELPEGS®, your crew can screed confidently to stable tops, reduce rework, and protect required topping thickness across demanding pours.

Adhesion And Height Control

Reliable adhesion and fixed head height protect your specified elevation from setup through final screeding. With LEVELPEGS®, you set each peg by laser or digital level, lock it at target height, and rely on adhesive integrity through hose pull, traffic, and vibration. Cheap knock-offs can peel, wobble, or creep because they lack positive locking and dependable bonding.

Compare surface compatibility before installation, especially across substrates with different porosity or contamination risks. You also need control points that withstand thermal expansion without shifting elevation. LEVELPEGS® cut cleanly to height and retain snap-back memory, so their tips remain reliable screed references. At edges and transitions, maintain 12–18-inch spacing with stable heads. That precision limits over-pour, prevents thin weak areas, reduces bond-failure exposure, and avoids costly grinding, patching, and material waste during placement.

Why Cheap Level Peg Adhesive Drifts

Cheap level peg adhesive can undermine an otherwise accurate SLU pour because low-tack formulas soften under moisture and lack the shear strength to hold pegs at elevation. You lose reliable height control when vibration, hose pulls, or movement shifts a peg during placement.

• Moisture-softened glue lets pegs sink or tilt.

• Weak adhesive chemistry permits measurable drift.

• Inconsistent dosing creates brittle, debonding points.

• Poor environmental testing exposes temperature-swing failures.

• Weak installation technique can’t compensate for slow cure.

Each millimeter matters: drift can breach specified topping thickness, disrupt threshold clearances, and create low spots beneath resilient flooring or coatings. Cheap pins may appear economical, but re-setting pegs, adding material, and correcting uneven areas quickly erase savings. Premium LEVELPEGS® use moisture-resistant, high-bond adhesive systems engineered to maintain reference elevation, helping protect specifications, labor efficiency, and your finished-floor budget.

How LEVELPEGS® Stay Stable Under Traffic

LEVELPEGS® maintain grade control under normal jobsite traffic because their adhesive-backed bases, engineered stability, and locked head height resist movement from footfalls, hose pulls, vibration, and screed contact. Once you set each peg with a laser or digital level, its fixed head height prevents vertical drift that can create costly elevation corrections.

The base provides traffic resilience and vibration isolation, helping the peg resist tipping or shifting during routine installation. If light contact displaces a cut peg, its snap-back memory returns it to gauge height, protecting pour consistency without repeated resetting. During finishing, the locked head design directs load transfer into the substrate instead of flexing the peg body. You get reliable reference points through placement, screeding, and troweling—without the hidden labor, material waste, and rework risks common with lightweight knock-offs.

LEVELPEGS® Spacing for Better Grade Control

Plan peg layout before placement to maintain grade control and avoid costly corrections during the pour. You’ll achieve more reliable elevations when you coordinate LEVELPEGS® with substrate preparation, Nivcomp mapping, and planned pour sequencing. Use a layout that matches slab conditions rather than relying on arbitrary intervals.

• Space pegs 3–5 feet apart across open areas.

• Use 12–18 inch edge spacing at doorways and elevation changes.

• Increase peg density for shallow, stiff mixes.

• Tighten intervals on larger slabs and where straightedges are shorter.

• Run pegs in straight lines aligned with the pour direction.

This disciplined layout helps you maintain a wet edge, verify critical clearances, and prevent low or high areas before they become expensive rework. By setting LEVELPEGS® in advance, you create a measurable control system that supports accurate placement and protects project margins.

Why Cheap Pegs Disrupt Screeding

When a screed depends on each peg as a true elevation reference, unstable knock-offs can undermine grade control across the entire placement. Under screed pressure, peg deformation can make tips compress, so your screed rides high or low and produces inconsistent pour heights. Thin bases and weak adhesive may shift during hose pull or foot traffic, creating localized settling that distorts the intended plane.

Non-uniform tolerances also reduce snap-back and height accuracy, leaving you unable to treat every tip as a dependable gauge. That uncertainty drives more edge checks and tighter-than-recommended spacing—often below 3–5 feet—slowing production and increasing labor cost. Brittle, poorly cut pegs can interrupt the pass when tools strike them, while minor movement compounds into screed misalignment. A stable, precisely manufactured reference system protects placement speed, flatness control, and budget predictability.

How Broken Pegs Cause Rework and Waste

When a peg breaks, you lose the fixed-height reference and risk low spots that fall below spec. You then spend labor and material on grinding, patching, or re-pouring areas that should have met grade the first time. Each failure also stops the crew for grade resets, adding avoidable time, waste, and disposal costs.

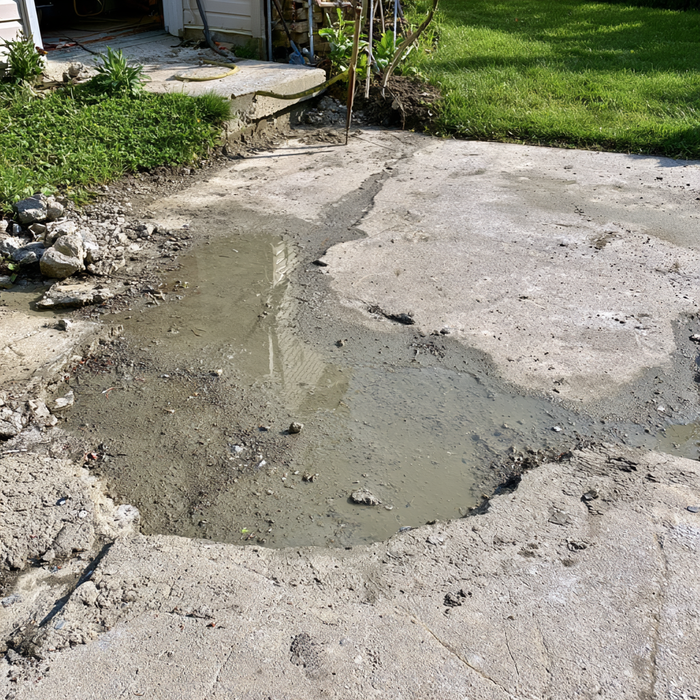

Broken Pins Create Low Spots

A broken or snapped LEVELPEG head creates an immediate low spot by letting the screed run below the specified elevation. You lose thickness control before the pour can self-correct, putting flatness, bond performance, and budget at risk.

• Verify peg height during installation training to prevent avoidable failure modes.

• Apply inspection protocols before placement, especially after moving the hose or after foot traffic.

• Check edges and doorways at 12–18-inch spacing; damaged controls distort transitions.

• Replace fractured pins immediately to prevent ridge-to-valley variation and adhesive failures.

• Use locked-height controls that resist vibration, so you don’t over-pour to chase thickness.

When a peg tilts, sinks, or disappears, your screed follows the defect. Stopping to reset control points also disrupts the wet edge and can create cold joints. Reliable LEVELPEGS protect elevation accuracy, reduce patching exposure, and keep your installation process engineered for predictable, standards-compliant results.

Rework Wastes Material And Labor

The cost of a broken or deformed peg extends beyond a low spot: it turns a controllable placement defect into material waste and paid rework. When a cheap pin shifts under hose pull or foot traffic, your screed can miss elevation across the room. You may need to remove and re-pour thin areas, adding material cost and 1–2 extra labor hours per affected 100 square feet.

Broken heads at doorways and junctions create another productivity drain. Your crew must chase grade, re-cut controls, and spend roughly twice as long finishing those critical edges. Inconsistent heights also create feathered areas that can compromise bond, risking later flooring removal and replacement.

LEVELPEGS® locked heads help you hold specification on the first pass, reduce over-pour, limit schedule delays, and protect your installation margin.

LEVELPEGS® for SLU, Toppings, and Patches

LEVELPEGS® give your crew fixed, laser-set gauge points for self-leveling underlayment, toppings, and patches, so material is placed only until it kisses each peg top. You control thickness, protect clearances, and reduce costly over-pours.

• Set elevations with precise laser calibration or a digital level.

• Space pegs 3–5 feet apart for distributed grade control.

• Tighten spacing to 12–18 inches at doorways, edges, and junctions.

• Cut and adhere pegs before placement; screed against continuous checkpoints.

• Document low spots, substrate prep, and manufacturer thickness compliance.

Your installation training becomes repeatable: maintain a wet edge, limit cold joints, and verify patch depth as work progresses. Contractor testimonials consistently value this measurable QA record. Rather than guessing with cheap pins, you create defensible results, reduce rework, and preserve material margins on every pour.

How to Choose Quality LEVELPEGS®

Choose quality LEVELPEGS® by prioritizing adhesive strength, fixed-height stability, and precise cuttable heads over the lowest unit price. Your adhesive selection should resist hose pull, foot traffic, and vibration, so pegs don’t lift or drift before the pour cures. Confirm peg compatibility with your substrate, leveling material, laser, or digital level, and choose units that lock at the required gauge.

Look for cuttable heads with dependable snap-back memory, including 65 mm options, so you can trim accurately to finished elevation. Validate performance at standard layouts: 3–5 feet on general runs and 12–18 inches near edges and shifts. Effective installation techniques preserve spacing, alignment, and grade control across the slab. Finally, compare suppliers’ documented QA resources, catalogs, and videos. A proven system reduces over-pour, under-pour, and costly rework.

Frequently Asked Questions

What Is the Cheapest Way to Level a Floor?

The cheapest way to level a floor is to use a string line and bubble level, then build low spots with patching compound. You can use DIY spacers, cardboard shims, or shimming underlayment for minor dry-install adjustments, but verify thickness, compression resistance, and manufacturer limits. You’ll spend under $50 on small repairs, yet careful measuring prevents failures. For larger areas, a laser improves accuracy, but doesn’t replace height-control checks.

What Is the Cheapest Floor Leveling Compound Available?

The cheapest option is usually a generic cementitious patch mix, often 5–8 per 20–50 lb bag. You’ll save upfront, but verify minimum thickness, substrate preparation, and ASTM-compatible performance. Compare material alternatives based on coverage, bond strength, and cure time. Use disciplined application techniques to limit waste and rework. For thin pours or demanding finishes, prioritize polymer-modified products; their long-term durability can markedly reduce total installed cost.

How Much Should Floor Leveling Cost?

You should budget roughly 2–$ 6 per square foot for professional floor leveling, including material costs and labor. Complex repairs, thicker pours, moisture mitigation, or tight tolerances can raise installed pricing to 8–10 per square foot. Confirm substrate prep, pour depth, and finish requirements before approving a quote. Build verification time into your project timeline, since accurate laser checks prevent costly over-pours, callbacks, and threshold-clearance issues.

What Is the Cheapest Self-Leveling Concrete?

The cheapest self-leveling concrete typically costs 0.30–0.80 per pound: generic, Portland-cement-based private-label mixes. You can lower upfront costs further with DIY mixes, but you’ll sacrifice predictable flow, strength, and warranty-backed performance. Rental equipment may improve placement consistency, yet it adds to your true budget. Compare Regional pricing, minimum thickness, bond-strength data, cure times, and substrate-prep requirements before choosing. You’ll avoid false savings and protect your installation’s lifecycle cost.

Conclusion

When you choose LEVELPEGS®, you protect pour height, screeding accuracy, and finish quality from the start. A peg that shifts by just 3 mm can create a visible low spot across an entire bay, forcing extra material, grinding, or rework. Cheap knock-offs often save pennies per peg but can cost far more in wasted SLU, labor, and schedule delays. Specify stable adhesion, consistent dimensions, and traffic resistance so your floor meets tolerance without avoidable corrective work.
